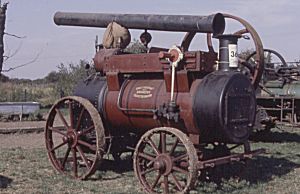

No 11692 The oldest surviving Paxman portable known, this 8 NHP single cylinder semi-portable has a 10" bore and 12" stroke. It was ordered by the Grand Junction Canal Company on 1st December 1902 and despatched to Leighton Buzzard three weeks later on 23rd December. The engine is fitted with Paxman patent expansion valve gear.
Photo - Peter Love
This engine was always said to be very economical when running. It is pictured here at the sale of the late Tom Paisley's collection when it appeared to have a brand new firebox fitted. Hardly any bids were taken for the engine by the auctioneers and it was sold after the sale to Randalls of Norwich, the present owners. The livery is mainly maroon, not a colour usually found on Paxman engines, but matching that of the lagging sheets and flywheel of the 3 NHP portable bought by Peter Love in January 2003. As can be seen from the photograph, the motion is mounted on a sub-frame on top of the boiler.
No 12520 It seems very probably this is the portable about which Robert Holt, owner of Paxman traction engine No 19413, emailed me in March 2001. He mentioned one imported back to the UK from South Africa. Sadly the dock loaders had "decided to drop test the engine from a great height" with disastrous results. Mr Holt viewed the engine in 2000. It had serious damage to the crank, which was bent, the flywheel was broken in two, the big end support castings were twisted and smashed in addition to other damage to wheels and axle. In the words of our correspondent, what a crying shame that such a rare and beautiful engine should be treated in this way.
Known to be at Banbury, Oxfordshire, in 2000, Robert Holt said the engine had disappeared from there by early September 2001 when he was trying to trace it. He thought restoration would be very costly because of the extent of the damage.
The order book entry for No 12520 is a little ambiguous. The best guess is that the engine was ordered on 3rd March 1905 and allocated order number 7593. A 10 NHP single cylinder portable, 1904 type, with 11" bore and 14" stroke, the customer was G Dudley Bates of Crown Point, Norwich. It is believed the engine was later exported to Mozambique and used there on a sugar plantation before being brought back to the UK.
No 12729 Made to Order No 7760 or 7761, entered in the order book on 7th October 1905, No 12729 is a 6 NHP single cylinder portable, 'New Type', 8¾" bore x 12" stroke. Part of an order for six portables, placed in October 1905 by M Gleisner & Co, Paxman's agent in Chile, this engine was despatched to Concepción on 12th December 1905. The other engines in the order comprised an identical single cylinder 6 NHP and four double cylinder (duplex, not compound) portables: a 10 NHP, two 12 NHPs and a 14 NHP.
Photo © Michele Goddard 2007
Gleisner & Co. was a Hamburg firm headed by Maurice Gleisner. In 1904 it was appointed sole agent for Paxman in Chile where Gleisner had offices in Concepción, Valparaiso, Santiago, Talcahuano and Talca. A very large number of portables was sold to Chile in 1906 and Gleisner became the agency which placed the most overseas orders with Paxman in a single year. The good times were not to last as Chile was subsequently hit by an earthquake and severe recession.
Found in Chile in 2007, No 12729 was purchased by Michele and David Goddard who brought it back to England in December 2007 and reported it to be in excellent condition. In summer 2008 it was bought by Simon Caudwell of Cullompton, Devon. Other than No 11692 described above, No 12729 is the oldest Paxman portable in good order.
The engine has some interesting features: - she has a Davey Paxman patent governor; in place of the usual circular 'Davey Paxman' maker's plate on the smokebox door is an identically sized plate bearing the agent's name; the engine number is not only on the bronze plate on the backhead but is also stamped on the agent's plate on the smokebox door; the number also appears in the usual place on the end of the crankshaft and is stamped on the gauge frame and pressure gauge fittings on the backhead. A '6 H' is stamped on the top of the backhead in the centre which one assumes relates to the engine's 6 hp rating.

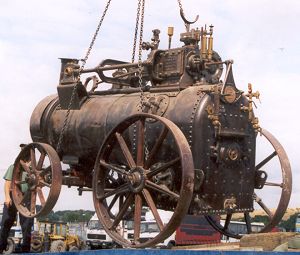

No 12982 Another of the older surviving Paxman portables, having been built in 1906, No 12982 arrived back in the UK from Chile in August 2003.
Although not shown in the photograph the crankshaft is with the engine. As at January 2004, prior to any restoration work, the engine was somewhat worn particularly the bearings, crankshaft journals, and big end. Hardly surprising after nearly 100 years! The smokebox, chimney base, and at least one tubeplate needed replacing. If anyone knows of a suitable spare chimney base please contact the website and we will pass on details to Roger Luck who owns the engine. The flywheel is not thought to be original, being of 5' diameter rather than the usual 4' 6". Roger wonders if the original was smashed in the same incident which resulted in the rear axle being broken.
The piston and cylinder bore are in good condition, as are the valve chest and the slide valve. Quite unusually most or all of the brass on this engine has survived in tact. Very wisely this has been removed for safe keeping. Sadly most of the brass originally on other surviving portables has been lost to trophy hunters who have no appreciation of the history lost by their thefts and vandalism. Because of existing commitments restoration work on No 12982 is not scheduled to commence until early 2005.
Roger initially thought his portable might be a 6 hp machine as that was stamped on the mud hole door and the top outer wrapper of the firebox. A look at the old Paxman order book confirmed his opinion. The engine was one of five portables ordered (Order Nos 7968 to 7972 inclusive) on 2nd May 1906 by Gleisner & Co. Orders 7968 and 7969 were each for a 6 NHP S C (i.e. single cylinder) Portable Engine. 8¾" x 12". In this section of the surviving copy order books, engine numbers have not been entered against every order number. From the book, by a process of interpolation, it looks as if 12982 might have been built against order number 7969. However Roger has found the number 7968 stamped on the backhead. The point is not of major consequence as both engines were built to the same specification and despatched within a week of each another. Just above the firedoor are stamped two other numbers, 7903 and 7752, the significance of which is unknown at present. Each of the three other orders were for a 12 NHP D C (i.e. double cylinder - duplex, not compound) Portable Engine. 8¾" x 12".
All five were sent to Talcahuano, Chile. The first 6 NHP left the Colchester factory on 23 August and the second on 28th August 1906. The first 12 NHP was despatched on 4th September 1906 and the last two on 4th December that year.
No 15033 Brought to our attention in October 2003, the engine is in Finland, its original destination. One of two portables ordered on 13th February 1909 by Konekauppa Osakeyhtio Aatra, the 4 NHP single cylinder engine was originally of 7" bore x 12" stroke. Konekauppa placed a number of other orders with Paxman for portables between 1908 and 1910. No 15033 was sent on 10th August 1909 to "Helsingfors via Hull". (Helsingfors is the Swedish name for Helsinki - Finland did not gain its independence until 1917.) This engine is missing its cylinder.
No 15477 A 4 NHP portable with a 7" bore x 12" stroke. Ordered on 28th April 1910 by the Intercolonial Boring Co of Brisbane, Australia, it was despatched from Colchester on 17th October that year.
The engine arrived back in the UK from Australia in September 2003 and is with Derek Marder at Andover, Hampshire. Reported to be in remarkable condition, very original and complete, it has a long firebox with girder crownstays running across the top of the box. The boiler is 23" diameter and contains a tube nest with fourteen 2½" diameter tubes. Apart from the main steam pipe to the regulator, which appears to have been modified, and the missing mud doors, all the fittings and motion appear to be in tact.

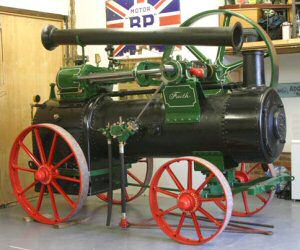

No 15513 This engine, which arrived back in the Colchester area from Chile in late December 2005, is in remarkably good and complete condition. No 15513 is owned by Duncan Pittock who, as at August 2008, had nearly completed its restoration which has included retubing the boiler and making a new smokebox. The engine arrived with two flywheels, both of Paxman manufacture. The intention is to revert to only one flywheel, as fitted originally.
No 15513 in partially restored condition. Photo © Peter Love 2007
Made to Order No 9485, entered on 27th May 1910, No 15513 is a 6 NHP single cylinder portable, 8¾" bore x 12" stroke, built with a colonial firebox. The order was placed by M Gleisner & Co, Paxman's agent in Chile, and the engine was despatched to Talcahuano on 8th November 1910. It was part of an order for ten portables placed by Gleisner on that date, made up of 2 x 4 NHP, 4 x 6 NHP, and 4 x 8 NHP engines.

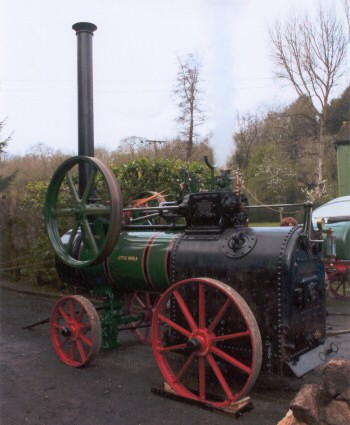

No 15584 One of two 4NHP portables, with a 7" bore x 12" stroke, ordered on 9th July 1910 by the Intercolonial Boring Company of Brisbane, Australia. A few days later, on 12th July, IBC ordered a couple of 5NHP portables, 7¾" bore x 12" stroke. All four engines were despatched from the factory on 9th December that year.
Shipped back to England as part of a container load of machinery, No 15584 arrived at the port of Felixstowe on 30th July 2001. Will Dakin of Sandbach, owner of Paxman traction engine No 16849, heard about it shortly afterwards, went to see it, and decided to buy it. Parts of the firebox are now rather thin but the boiler tubes appear to be in reasonable condition and the motion is in good working order. By Autumn 2001 Mr Dakin had run the portable using steam from his traction engine and taken it to one or two steam rallies. Some of the original green paintwork is still visible, with some red on the wheel spokes and flywheel. On removing the cover plate the boiler was found to be full of sand, up to about the third row of tubes, and Will wondered if it had ever been flushed out during its working life! As at March 2003 the engine is dismantled, awaiting restoration as time and resources allow.
As can be seen in the photograph, the engine has a very large extra long firebox. This was first thought to be for wood burning but David Macloy suggests it may have been designed for burning bagasse or straw. Bagasse, the fibrous residue of sugar cane left after juice extraction, was used to fuel boilers and sugar cane was grown in Queensland, the engine's original destination. It is also relevant to mention that early 20th century Paxman catalogues for industrial boilers featured some specially designed for burning bagasse.

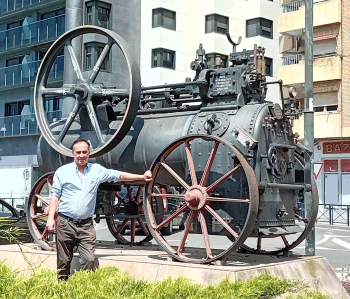

No 15715 An 6 NHP portable now on open display in the small town of Monzón, Aragon, Spain. The engine was one of an order for 24 portables (8 x 5 NHP, 16 x 6 NHP) received by Paxman on 16th October 1910 from the Sindicato Nacional Agricola. Although the date of despatch has not been entered in the order book, the plate confirms it was built in 1911. An interesting feature is the Spanish wording on the fire door about the water level and firebox.
Photo © Paul Adkinson 2004
Paul Adkinson emailed us about this portable which he found while driving through the area in early 2004. He enquired about its history at Monzón City Hall and was told the engine had been donated to the town by the family of Campo-Gallifa in the 1980s. It was acquired by the Campo family in 1946 and used in the Pyrenees mountains for many years to drive a sawmill and other machinery. Bark and wood offcuts from the mill too small for sale were used for fuel. The engine stood in front of the town's sugar refinery until April 2003 when it was restored and placed in its present more prominent position.

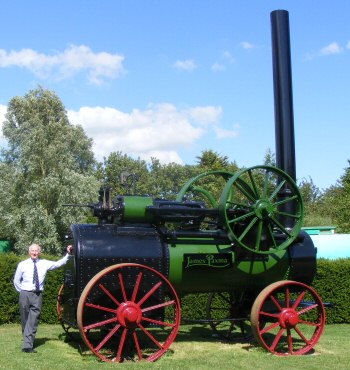

No 18025 A 20 NHP double cylinder (i.e. duplex - both cylinders of equal size) engine, one of the two largest known surviving Paxman portables. (The other, No 20428, also of 20 NHP, is a compound, not a duplex.) Ordered in December 1912 by Paxman's Portuguese agent, Von Hafe of Oporto, it was despatched from Colchester in April 1913. On arrival at Oporto three teams of six oxen each took three weeks to haul it 70 miles up into the hills where a sawmill was constructed around it. For the next 57 years it drove the sawmill which cut oak for making port barrels, and was fired throughout on the off-cuts and sawdust produced. No 18025 now belongs to Mr Philip Paxman, son of Edward Paxman who pioneered the Company's success in the field of diesel engines, and grandson of the Company's founder. The man who fired up the portable for Mr Paxman, when he purchased it from the original customer's grandson in 1974, was himself 74 years old. He had started work on it at the age of 13 and he and the engine retired together in 1970. The engine was brought back via Tilbury to Cambridgeshire where it now awaits restoration.

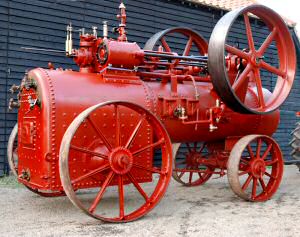

No 18050 A 10 NHP double cylinder (not compound) engine, with cylinders of 7¾" bore x 12" stroke. It was one of thirteen portables (Nos 18040 to 18052) of different sizes ordered on 31st December 1912 by M Gleisner & Co for Talcahuano, Chile. Maurice Gleisner, based in Hamburg, was Paxman's agent in Chile. No 18050 was despatched to Talcahuano on 8th July 1913. In the order book the working pressure is entered as 8 ats, perhaps reflecting Gleisner's continental practice rather than the normal British practice of quoting pressures in psi.
Photo courtesy of Preston Services, 2008.
The engine arrived back in the UK at the end of 2004, having been purchased by Michael List Brain of Preston Services. As at October 2008 it is still with him at Preston, near Canterbury, Kent. The engine has undergone a considerable amount of restoration since its return from Chile as is evident in the photograph here.

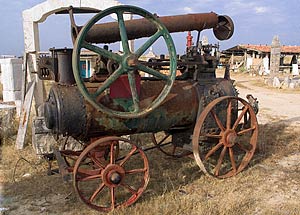

No 20178 Spotted by Jim Beizsley during the summer of 2006 near Sintra, about 10 miles west of Lisbon. In mid-November 2006 it was purchased by Duncan Pittock and is now back in the Colchester area. The portable was one of eight, of varying sizes, ordered on 3rd December 1919 by Souza & Cahda of Lisbon, who were presumably Paxman's agents in Portugal.
Photo © Jim Beizsley 2006
No 20178 is a 3 NHP single cylinder portable of 6½" bore x 12" stroke. No destination or date of despatch is entered in the order book but the maker's plate confirms it was built in 1920. Looking at other entries in this section of the order book it seems likely the engine was sent to Lisbon in the spring of 1920. An interesting feature is the chimney-lifting gear attached to the chimney base. The only other photograph I have seen of a surviving Paxman portable with this device is No 20624 (see below) which was also despatched to Portugal.

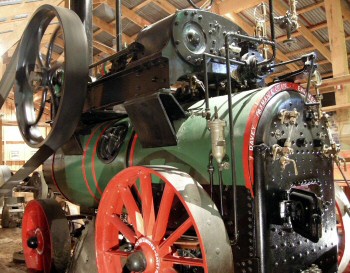

No 20428 The largest surviving Paxman compound portable of which we are aware, this 20 NHP engine, designed for a working boiler pressure of 140 psi, was the second of two ordered on 13th May 1920 by Chapman Son & Deekes. Both were despatched to Auckland, New Zealand; the first, No 20427, on 23rd September 1921 and No 20428 shortly after on 5th October. 20 NHP appears to be the largest size of portable actually made by Paxman, although the catalogue also offered 25 and 30 NHP types. The December 1913 catalogue specifies the cylinders of the 20 NHP compound as being 9" and 14½" bore x 16" stroke. An interesting feature of No 20428 is the substantial girder frame carrying the motion, visible in the photograph here.
Photo - NZ Memories
No 20428 is now on display at the Kauri Museum, Matakohe, New Zealand. The February/March 2005 issue of NZ Memories carried an interesting article about its history. The engine was used from 1922 to 1927 by the Public Works Department in Tauranga during the construction of the East Coast railway on North Island. From 1927 to 1930 it powered the Public Works Department sawmill at Waikoau. It was then idle until being acquired by George Miles and his sons in 1936 to drive their sawmill at Ashley Clinton, Hawkes Bay. Here it was well looked after and kept in immaculate condition. In 1987 it passed to the New Zealand Forest Service who moved it to Rotorua. The intention to put it on show as part of an historic display was never realised and it was donated by the Forest Service to the Kauri Museum in 1990. The engine was then in storage for several years until being restored by a group of steam enthusiasts who completed the task in June 1998. No 20428 has been on display in the Museum's sawmill extension since this was opened in November 1998.
No 20624 An 8 NHP portable now in the reserve collection of the Deutsches Technikmuseum in Berlin. We don't yet know how it came into the museum's collection. The engine was one of an order for six portables, of different sizes, placed with Paxman on 24th March 1921 by Eduardo Puito de Sousa. The engine was despatched to Lisbon (Portugal) on 29th July that year. From company records we know that at least three of the other portables ordered at the same time were also sent to Lisbon.
Photo courtesy of the Deutsches Technikmuseum, Berlin
The engine appears to be in very original order. Like No 20178 it is fitted with chimney-lifting gear which can be seen attached to the front of the chimney base.
No 20776 One of only two known surviving Paxman compound portables, this 10 NHP engine was despatched to France on 2nd January 1922. It was one of five portables ordered by Dufayet, a French agent, on 26 November 1921: the others being 5 NHP, 7 NHP and 8NHP single cylinder types and a 12 NHP compound. No 20776 was found in 2008 in a shed where it had stood for 57 years, at Monthyon, a small village about 20 miles north-east of Paris and 5 or 6 miles north of Meaux. It seems most probable that the original purchaser lived in this locality, a major grain growing area, and that the engine was used primarily for driving a threshing machine, the main task for which portables were originally developed. Some material which was encrusted on the wheels suggested it may also have been used for processing sugar beet, another big crop in the area.
Photo © Mark Pilkington 2008
No 20776 was purchased by Brian Hill in summer 2008 and arrived in Somerset on 19 September 2008. It is pictured on the front cover of the November 2008 issue of Old Glory which carries a five page feature article on the engine and its return to the UK. The cylinders are 6½" and 10½" bore x 14" stroke, and the flywheel is 5' diameter with an 8" face. The pistons are fitted with tail rods which are protected by impressive brass tail rod covers. The covers are drilled with an oil hole on top and a hole underneath for draining condensate and excess oil. On the sides of the very substantial girder frame carrying the motion one can still see the original maroon paint with red pinstriping. The ends of the frame, painted green, are castings, the bottom edges of which are concave, following the curved profile of the top of the boiler. Although the engine has clearly been well-used in the past, it is very complete and has its original Paxman patent automatic expansion gear. When found in France even the leather drive belts to the governor were hanging on their pulleys.

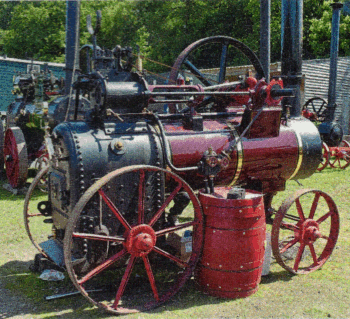

No 21693 This 3 NHP portable was ordered from Paxman on 19th February 1925 by the Neuchatel Asphalte Co and despatched from the factory shortly after, on 11th March.
Neuchatel was a major road surfacing contractor and appears to have been in business from 1873 up to 1966 when it was absorbed into what is now the Tarmac Group. Between 1923 and 1925 the Company was by far Paxman's biggest customer for portables, ordering no less than 27 engines. They were bought to drive Neuchatel's Nacopax Road Making Plants, also built by Paxman, and were almost the last portables to be made at Colchester.
Two portables purchased by Neuchatel, Nos 21509 and 21841, were dispatched to Billericay, near the place No 21693 was working before passing into preservation. One wonders if, during the 1920s, Neuchatel had a depot at Billericay or was working on a major contract in the area.

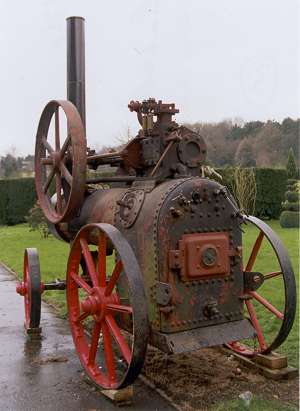

Pictured on the right is the engine at the time of its purchase by Peter Love of East Sussex in January 2003. Peter has undertaken a considerable amount of restoration work on the engine and some details of this can be viewed on a page about No 21693.
Photo © Peter Love 2003

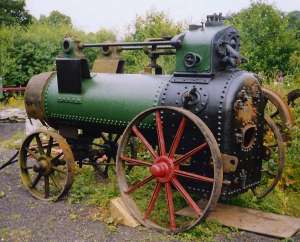

Unnumbered This 4 NHP engine appeared at the Cheffins Cyril Philip sale at Castle Hedingham, Essex in July 1995 when it looked a very sorry sight. It is believed Mr Philip purchased it in the 1950s from a horticultural nursery in the area where it had been used for soil sterilization. The crankshaft and much of the motion is missing. The engine features a different type of cylinder block from those usually seen on Paxman portables, having a wheel valve regulator on the nearside. It was offered for sale by Michael List Brain of Preston Services, near Wingham, Canterbury, Kent, for a considerable time before being purchased in 2003 by Charlie Dore from near Whitby, North Yorkshire.
Photo © Martin Stubbins 2003
The tubes are 2.1/8" diameter x 76" long and the tube plate 28" diameter. The firebox is 26" wide x 26.5/8" deep x 29" high, and fitted with girder type crownstays. The cylinder's external length is 17 inches and the rear cylinder cover 11½" in diameter. A boilersmith who looked at it felt the firebox and barrel might be repairable but that the smokebox and tubes were scrap. As both the maker's plate and crankshaft are missing it has not been possible to discover the number of the engine. In June 2006 Martin Stubbins emailed to say Charlie Dore was making good progress on restoration. The boiler had been completely dismantled. A new throatplate and outer sidesheets had been made and fitted. The boiler barrel had been rolled and was awaiting fitting. The front axle and both rear wheels had been refurbished and painted. Martin commented the portable was really beginning to look good.
Unnumbered A query received here in January 2003 about the remains of a portable with the piston and flywheel missing, may have related to one previously known to be at Kidderminster. Peter Love was told, some years ago, that the Kidderminster portable had been used for soil sterilisation, which explains why the motion and other related parts would have been removed. He says this was quite a common thing to do 50 years ago. Steam sterilisation of soil in market gardens and nurseries was indeed a common practice about that time.
Paxman catalogue No 700A of December 1913 says "Our single-cylinder portable engines are now made suitable for a working pressure of 120 lb. per square inch, instead of the usual 100 lb., with a proportionate increase in the power developed". The same catalogue says that the boilers for the Company's compound portables are "suitable for a working pressure of 140 lbs per square inch".
Paxman's 'Instruction Book for the Working and Management of Portable Engines', published in 1913, touches only briefly on this subject. The paragraph headed 'Steam Pressure' is mainly about safety valves and how to check they are working properly. It says safety valves are to ensure that the pressure in the boiler shall never exceed "the working pressure indicated on the gauge by a red mark". If an engine still has its original pressure gauge then the red mark will indicate the working pressure for which it was originally designed. However, it is not recommended, and there is no need, for portables in preservation to worked at this pressure as noted below. Someone with considerable experience of operating such engines suggested to me that a working pressure of 80 psi or less should be quite adequate.
David Macloy (Australia) says that in his personal experience a helpful boiler inspector will recommend the highest safe working pressure he can so that the pressure can be restricted in the future and still leave enough steam pressure to work the engine. This has been done with a couple of engines David looks after and the safety valves on both have been set at 100 psi.
Alex Walford believes Paxman portables were not highly rated. In view of the age of engines in preservation he advises against stressing boilers, particularly as there is no longer any commercial reason for working the engines hard. Regardless of working pressure, boilers should of course be subject to a proper inspection and covered by a valid certificate or 'ticket' before being steamed.
A selection of Paxman boiler drawings is currently held by Martin Stubbins (an ex-Paxman man) of Colchester, on behalf of a local steam engine club. Portable boiler drawings range from 2NHP to 10NHP, and include strawburners and colonial types as well as standard designs. Locomotive type boiler drawings are for 3NHP to 10NHP traction engines. All are general arrangements rather than detail drawings but general dimensions are given. Paxman has released the drawings to Martin on the understanding that they are made available for reference, on request. This is subject to appropriate safeguards to protect the drawings and the re-imbursement of costs incurred in responding to requests for information. Martin's email address is martin@invicta1929.freeserve.co.uk and more information can be found on his website at http://steammart.mysite.wanadoo-members.co.uk
Richard Willcox of the Road Locomotive Society (est 1937) is the respected UK authority on road steam liveries. His opinions on paint liveries used by Davey Paxman are summarised below, as expressed to Peter Love in May 2003. They are based on examinations of Paxman portables in the UK and Australia, as well as the study of four large official photographs in the RLS collection. One should add that various changes to the scheme would undoubtedly have been made during the more than five decades of Paxman portable production. However this is basically how it stayed for many years.
Boiler lagging and crankshaft bearing housings: - Pale Chrome Green, very similar to Tekaloid Middle Green. Plain 1/16" white lining on the crankshaft bearing housings.
Boiler bands: - black with 1/8" red edging, similar to a Marshall; a fine 1/16" white line approximately one inch on either side of the band, painted on the lagging.
Cylinder lagging, trunk guide crankshaft brackets (but not bearing housings), and flywheel: - maroon. Possibly also maroon on the water pump and crankshaft. (However some Pale Chrome Green flywheels have been noted by Peter Love). Rectangular red lines 1/8" with inward 2" radius corners, on cylinder lagging and crankshaft hornplates.
Road wheels and forecarriage: - red, with raised lettering on the wheel hubs in white. Spokes lined black with fork at the other end of the spokes.
Three designs of transfer or maker's name have been seen. One of these is a large pictorial design (similar to that shown on the Home page) of which no decal is now available. The other two are relatively modest, using only lettering. They are easy to replicate but the correct background colour of each remains unknown. On both designs the lettering appears to be white, with shadowing to the right and below in a dark colour, possibly black.
As will be seen from the above, the website has attracted a steady stream of new information about Paxman portables which we have been pleased to receive and make available here. Every contribution adds another piece to the jigsaw and helps us compile a fuller history of these engines for future generations. If you know of a Paxman portable not mentioned here, or can provide more information about any that are mentioned, please do contact me with the details.

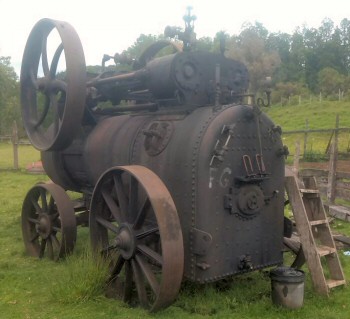

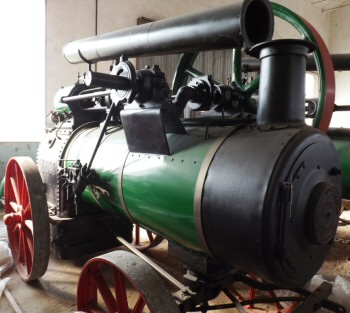

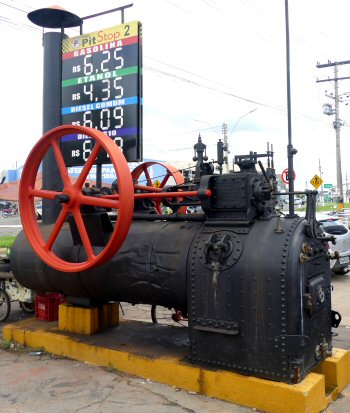

For details and photographs use the relevant link below.
